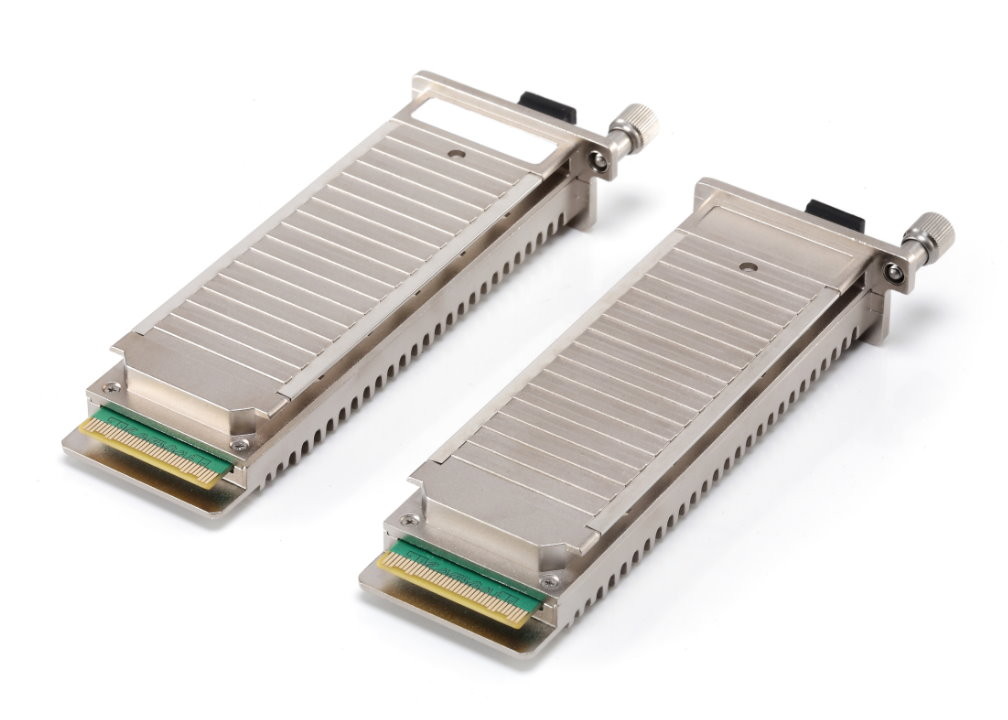

High Quality SC 10G Xenpak Transceiver Module Multimode Fiber

High Quality SC 10G Xenpak Transceiver Module Multimode Fiber

  • High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
  • High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
High Quality SC 10G Xenpak Transceiver Module Multimode Fiber
تفاصيل المنتج:
Place of Origin: Shenzhen,China
اسم العلامة التجارية: Neuter, OEM
إصدار الشهادات: CE/FCC/RoHS/TUV/UL
Model Number: 10110-A
شروط الدفع والشحن:
Minimum Order Quantity: 1PCS
الأسعار: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
اتصل
مفصلة وصف المنتج
Product Name: 10G Xenpak Module, Optical Transceiver Module Datarate: 10.3G
Wavelength: 850nm Distance: 300M
Application: 10GE Ethernet,10GE Core-routers,10GE Storage Ect. Form Factor: XENPAK
تسليط الضوء:

10g xenpak transceiver, cisco xenpak

,

cisco xenpak



High Quality SC 10G Xenpak Transceiver Module Multimode Fiber



Extreme Networks 10 Gigabit Ethernet XENPAK Transceiver, 850nm, up to 300 m on multimode fiber, SC connector

Supports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link



Features

  • Compatible with XENPAK MSA Rev.3.0
  • Support of IEEE802.3ae up to 300m (OM3 MMF)
  • Power Consumption 1.8W (typ.)
  • Temperature Range 0 to 70°C
  • Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
  • Adaptable Power Supply (APS:+1.2V)
  • SC duplex connector
  • Hot pluggable 70-pin connector with XAUI electrical interface
  • Management and control via MDIO 2-wire interface
  • Compatible with RoHS



Applications

  • 10GE Ethernet switches and routers
  • 10GE Core-routers
  • 10GE Storage
  • Other 10Gbps Ethernet Transmission System



Specifications:



P/N

10110-A

Datarate

10.3G

Distance

300M

Wavelength

850nm

Transmitter

VESCEL

Receiver

PIN

Media

MMF

DDM/DOM

YES

Connector

SC

Application

Datacom 10G Ethernet

Operating Temperature

0℃~ +70℃

Voltage Supply

1.2V/3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM





Extreme 10G Xenpak


XENPAK
10110 10110-A 10 Gigabit Ethernet XENPAK Transceiver, SR, 850 nm, MMF, 300 m range
10111 10111-A 10 Gigabit Ethernet XENPAK Transceiver, LR, 1310 nm, SMF, 10 Km range
10112 10112-A 10 Gigabit Ethernet XENPAK Transceiver, ER, 1550 nm, SMF, 40 Km range
10113 10113-A 10GBASE-ZR XENPAK 1550nm 80km Optical Transceiver
10114 10114-A LX4 XENPAK 10 Gigabit Ethernet XENPAK, 1310nm WWDM, MMF 300m and SMF 10km, SC
10116E  10116E-A LW XENPAK WAN PHY XENPAK, 10GBASE-LW, 1310nm, up to 10 KM over SMF, SC, RoHS-5




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
